Ping Command in Linux

Introduction

The ping command is one of the most fundamental and widely used networking utilities in Linux and other operating systems. Its name derives from the sound of sonar technology, mimicking the principle of sending a signal and waiting for its echo. In networking terms, ping sends ICMP (Internet Control Message Protocol) echo request packets to a specified destination and measures the response time, providing essential information about network connectivity and performance.

This command serves as a primary diagnostic tool for network administrators and users alike, helping to verify if a remote host is reachable, measure the round-trip time for packets, and identify potential network issues.

Basic Syntax

The basic syntax of the ping command is:

ping [options] destination

Where:

• options: Various flags that modify the behavior of the command
• destination: The target host, which can be specified as a domain name (e.g., google.com) or an IP address (e.g., 8.8.8.8)

How Ping Works

The ping command operates using the Internet Control Message Protocol (ICMP), which is part of the Internet Protocol Suite. Here's how it works:

1. Echo Request: The ping command sends ICMP echo request packets to the target host
2. Echo Reply: If the target host is reachable and configured to respond to ICMP requests, it sends back ICMP echo reply packets
3. Measurement: The ping command measures the time between sending the request and receiving the reply (round-trip time)
4. Reporting: The command displays statistics about the exchange, including packet loss and timing information

Basic Usage

Simple Ping

The most basic use of ping is to check if a host is reachable:

ping google.com

This command will continuously send ICMP echo requests to google.com until you stop it by pressing Ctrl+C. The output shows:

• The IP address of the target
• Sequence number of each packet
• Size of each packet
• Time taken for each round trip (in milliseconds)
• TTL (Time To Live) value

Limiting the Number of Packets

To send a specific number of ping requests:

ping -c 5 google.com

This command sends exactly 5 ICMP echo requests and then stops automatically.

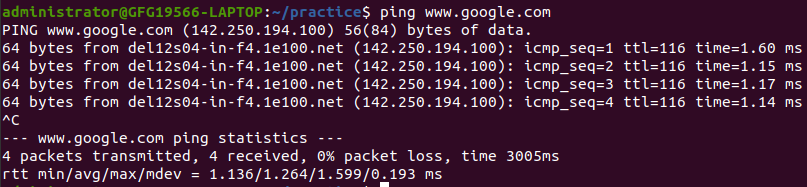

Interpreting Ping Results

A typical ping output includes:

PING google.com (142.250.190.78) 56(84) bytes of data.
64 bytes from maa03s43-in-f14.1e100.net (142.250.190.78): icmp_seq=1 ttl=59 time=15.6 ms
64 bytes from maa03s43-in-f14.1e100.net (142.250.190.78): icmp_seq=2 ttl=59 time=14.9 ms
64 bytes from maa03s43-in-f14.1e100.net (142.250.190.78): icmp_seq=3 ttl=59 time=15.2 ms
64 bytes from maa03s43-in-f14.1e100.net (142.250.190.78): icmp_seq=4 ttl=59 time=15.0 ms

--- google.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 14.921/15.183/15.603/0.278 ms

Key components:

• Bytes: Size of the response packet
• icmp_seq: Sequence number of the packet
• ttl: Time To Live value (maximum number of network hops)
• time: Round-trip time in milliseconds
• Statistics: Summary showing packets transmitted, received, packet loss percentage, and timing statistics

Advanced Options

Changing Packet Size

You can modify the size of the ICMP packets using the -s option:

ping -s 100 -c 5 google.com

This sends 5 ping packets with a data size of 100 bytes each (the actual packet will be 100 bytes plus 8 bytes for the ICMP header).

Changing Ping Interval

By default, ping sends one packet per second. You can change this interval using the -i option:

ping -i 2 -c 5 google.com

This sends a ping packet every 2 seconds, for a total of 5 packets.

Quiet Output

For a more concise output showing only the summary statistics:

ping -q -c 5 google.com

Setting Timeout

To set a maximum time to wait for responses:

ping -w 5 -c 10 google.com

This command will ping google.com 10 times or until 5 seconds have elapsed, whichever comes first.

Flood Ping

For network stress testing (requires root privileges):

sudo ping -f google.com

This sends packets as fast as possible, which can be useful for testing network performance but should be used with caution as it can overwhelm the network.

Adding Timestamps

To add timestamps to each ping response:

ping -D google.com

Specifying TTL (Time To Live)

To set the TTL value for outgoing packets:

ping -t 64 google.com

This sets the maximum number of network hops the packet can traverse.

Practical Applications

1. Testing Basic Connectivity

The most common use of ping is to verify if a host is reachable:

ping -c 4 8.8.8.8

If you receive responses, the host is reachable. If not, there might be connectivity issues.

2. Measuring Network Latency

Ping is excellent for measuring the round-trip time between your computer and a remote host:

ping -c 10 google.com

The statistics at the end show minimum, average, maximum, and standard deviation of round-trip times.

3. Checking for Packet Loss

Packet loss can indicate network congestion or other issues:

ping -c 100 google.com

The summary will show the percentage of packets lost during transmission.

4. Network Troubleshooting

When experiencing network issues, ping can help identify where the problem lies:

ping -c 4 192.168.1.1  # Test connectivity to your router
ping -c 4 8.8.8.8      # Test connectivity to the internet
ping -c 4 google.com   # Test DNS resolution and internet connectivity

5. Testing DNS Resolution

If ping works with an IP address but not with a domain name, it might indicate DNS resolution issues:

ping -c 4 8.8.8.8      # Should work if internet is accessible
ping -c 4 google.com   # Might fail if DNS is not working

Common Issues and Solutions

1. "Destination Host Unreachable"

This error indicates that your local router cannot find a route to the destination:

• Check if the destination IP address is correct
• Verify your network connection
• Check if your router is functioning properly

2. "Request Timeout"

This occurs when no reply is received within the expected time:

• The target host might be down
• There might be network congestion
• A firewall might be blocking ICMP packets

3. High Packet Loss

If you're experiencing significant packet loss:

• Check for network congestion
• Look for physical connectivity issues
• Consider interference if using Wi-Fi

4. High Latency

If ping times are consistently high:

• Network congestion might be an issue
• The physical distance to the server might be large
• Your ISP might be experiencing problems

5. "Operation Not Permitted"

This error typically occurs when non-root users try to use certain ping options:

• Use sudo for privileged operations
• Check your system's security policies

Ping Command Options Reference

Limitations of Ping

While ping is a powerful diagnostic tool, it has some limitations:

1. Firewall Blocking: Many networks and hosts block ICMP packets for security reasons, making ping ineffective
2. Limited Information: Ping only tells you if a host is reachable and how long it takes, but not why there might be issues
3. Single Protocol: Ping uses ICMP, which might behave differently than other protocols like TCP or UDP
4. No Route Information: Ping doesn't show the network path taken to reach the destination

Alternatives to Ping

When ping isn't sufficient, consider these alternatives:

1. traceroute: Shows the network path to a destination
2. mtr: Combines ping and traceroute functionality
3. telnet: Tests connectivity to specific TCP ports
4. nc (netcat): Tests connectivity using TCP or UDP
5. curl/wget: Tests HTTP/HTTPS connectivity

Conclusion

The ping command is an essential tool in the Linux networking toolkit. Its simplicity and effectiveness make it the first choice for basic network diagnostics. By understanding how to use ping and interpret its results, you can quickly identify and troubleshoot many common network issues.

Whether you're a system administrator managing complex networks or a casual user trying to figure out why your internet is slow, ping provides valuable insights into network connectivity and performance. While it has limitations, it remains one of the most useful commands for initial network troubleshooting.
