SS Command in Linux

Introduction

The ss (Socket Statistics) command is a powerful utility for examining network connections on a Linux system. It serves as the modern replacement for the older netstat command, offering improved performance and additional features. The ss command provides detailed information about network sockets, allowing system administrators and network engineers to monitor and troubleshoot network connections effectively.

Developed as part of the iproute2 package, ss directly accesses kernel data structures rather than parsing /proc files, making it faster and more efficient than netstat, especially on systems with many connections. This direct access also allows ss to display more TCP states and socket information than its predecessor.

Basic Syntax

The basic syntax of the ss command is:

ss [options] [filter]

Where:

• options: Various flags that modify the behavior of the command
• filter: Expressions to filter the output based on specific criteria

Installation

The ss command is part of the iproute2 package, which is installed by default on most modern Linux distributions. If it's not available, you can install it using your distribution's package manager:

For Debian/Ubuntu-based systems:

sudo apt update
sudo apt install iproute2

For Red Hat/CentOS/Fedora systems:

sudo yum install iproute2
# or
sudo dnf install iproute2

To verify the installation:

ss --version

Basic Usage

Displaying All Connections

To display all socket connections:

ss

This command shows a list of all non-listening sockets (TCP, UDP, etc.) that have established connections.

Displaying Listening Sockets

To show only listening sockets:

ss -l

This is useful for identifying which services are actively waiting for connections on your system.

Displaying TCP Connections

To display only TCP connections:

ss -t

Displaying UDP Connections

To display only UDP connections:

ss -u

Displaying Both TCP and UDP Connections

To display both TCP and UDP connections:

ss -tu

Displaying All TCP, UDP, and Listening Sockets

To display all TCP, UDP, and listening sockets:

ss -tual

Advanced Usage

Displaying Numeric Addresses

To display IP addresses and port numbers in numeric form without resolving hostnames or port names:

ss -n

This speeds up the command execution as it skips DNS lookups.

Displaying Process Information

To show the process using each socket:

ss -p

This requires root privileges to display information for all processes. Without root privileges, it will only show information for processes owned by the current user.

Displaying Extended Information

To display detailed socket information:

ss -e

This shows additional information such as internal TCP information, security context for SELinux, etc.

Displaying Memory Usage

To display memory usage information for sockets:

ss -m

Displaying Timer Information

To show timer information:

ss -o

This displays information about timers such as keepalive timers, retransmit timers, etc.

Filtering by State

To filter sockets by state:

ss state established

Common states include:

• established: Connected sockets
• listening: Listening sockets
• time-wait: Sockets waiting after close
• close-wait: Sockets waiting for termination
• syn-sent: Sockets actively attempting to establish connection
• syn-recv: Connection request received

Filtering by Address or Port

To filter sockets by local address:

ss dst 192.168.1.1

To filter sockets by remote address:

ss src 192.168.1.1

To filter sockets by port:

ss dport = :80

This shows connections to destination port 80.

ss sport = :22

This shows connections from source port 22.

Combining Filters

You can combine multiple filters:

ss -t state established dport = :443

This shows established TCP connections to port 443.

Practical Examples

Example 1: Checking for Listening Web Servers

To check if a web server is running and listening on port 80 or 443:

ss -tlnp | grep -E ':80|:443'

The options used are:

• -t: Show TCP sockets
• -l: Show only listening sockets
• -n: Don't resolve service names
• -p: Show process using the socket

Example 2: Monitoring Established Connections

To monitor all established connections:

watch -n 1 'ss -t state established'

This updates the display every second, showing all established TCP connections.

Example 3: Checking Connection Count by State

To count connections by state:

ss -tan | awk 'NR>1 {print $1}' | sort | uniq -c

This command counts how many connections are in each state.

Example 4: Finding Processes Listening on a Specific Port

To find which process is listening on port 3306 (MySQL):

sudo ss -tlnp | grep :3306

Example 5: Checking for Connections to a Specific IP

To check all connections to a specific IP address:

ss dst 192.168.1.100

Example 6: Displaying Summary Statistics

To display summary statistics about sockets:

ss -s

This shows counts of sockets by type and state.

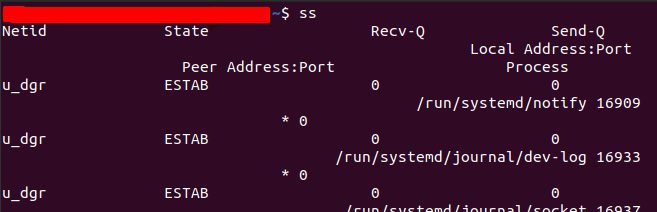

Understanding the Output

Connection Output Format

The standard connection output includes several columns:

• Netid: The socket type (tcp, udp, raw, etc.)
• State: The state of the socket (for TCP connections)
• Recv-Q: The count of bytes not copied by the user program connected to this socket
• Send-Q: The count of bytes not acknowledged by the remote host
• Local Address:Port: The local end of the socket (address and port)
• Peer Address:Port: The remote end of the socket (address and port)

Process Information Format

When using the -p option, additional process information is displayed:

• users: Shows the owner of the socket in the format (program_name,pid,fd)

Extended Information Format

When using the -e option, additional socket information is displayed:

• uid: User ID of the socket owner
• ino: Inode number
• sk: Internal socket identifier
• Additional TCP parameters like congestion algorithm, window scaling, etc.

Comparison with Netstat

The ss command is designed to replace netstat. Here's how they compare:

Advantages of SS over Netstat

1. Performance: ss is faster, especially on systems with many connections
2. More Information: ss can display more TCP states and socket information
3. Active Development: ss is actively maintained, while netstat is considered deprecated
4. Direct Access: ss directly accesses kernel data structures rather than parsing /proc

Equivalent Commands

Common Options Reference

Troubleshooting with SS

Identifying Port Conflicts

If an application fails to start because a port is already in use, you can identify the conflicting process:

sudo ss -tlnp | grep :8080

This shows which process is using port 8080.

Detecting Unusual Connections

To check for unexpected or potentially malicious connections:

sudo ss -antp | grep ESTAB

Review the list for connections to unfamiliar IP addresses or unusual programs making network connections.

Checking for Network Bottlenecks

High values in the Recv-Q or Send-Q columns may indicate network bottlenecks:

ss -tan | awk '$3 > 0 || $4 > 0'

This shows connections with non-zero queue values.

Verifying Service Availability

To check if a service is properly listening on the expected port:

sudo ss -tlnp | grep nginx

This example checks if the Nginx web server is listening on its configured ports.

Conclusion

The ss command is a powerful and versatile tool for examining network connections on Linux systems. Its improved performance and additional features make it a worthy successor to the older netstat command. By mastering the various options and filters available in ss, system administrators and network engineers can effectively monitor, troubleshoot, and analyze network connections.

Whether you're checking for listening services, monitoring established connections, or investigating network issues, ss provides the detailed information needed to understand and manage your system's network activity. As netstat continues to be deprecated in modern Linux distributions, becoming proficient with ss is essential for anyone working with Linux networking.
