User Datagram Protocol (UDP)

The User Datagram Protocol (UDP) is a connectionless transport protocol that provides a simple, unreliable service for application processes. It is part of the Internet Protocol Suite and is defined in RFC 768. UDP operates at the Transport Layer of the OSI model and is an alternative to the more complex and reliable Transmission Control Protocol (TCP).

Key Characteristics of UDP

UDP is characterized by several important features:

1. Connectionless: UDP does not establish a connection before sending data. Each packet (datagram) is handled independently.

2. Unreliable: UDP provides no guarantees regarding delivery, ordering, or duplicate protection. Packets may be lost, duplicated, or arrive out of order.

3. Low Overhead: UDP has minimal header size (8 bytes) and does not maintain connection state, resulting in lower overhead compared to TCP.

4. No Flow Control: UDP does not implement flow control mechanisms, so a fast sender can overwhelm a slow receiver.

5. No Congestion Control: UDP does not adjust its transmission rate based on network congestion.

6. Message-Oriented: UDP preserves message boundaries, delivering data to the application in the same chunks as sent by the sender.

7. Multicast and Broadcast Support: UDP supports one-to-many distribution models.

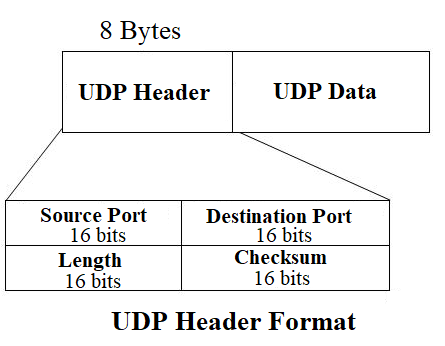

UDP Header Format

The UDP header is simple and consists of just 4 fields, totaling 8 bytes:

When to Use UDP

UDP is particularly well-suited for certain types of applications:

1. Real-time Applications: Voice and video streaming, online gaming, and other applications where timeliness is more important than reliability.

2. Simple Request-Response Applications: DNS (Domain Name System) queries, DHCP (Dynamic Host Configuration Protocol), and other protocols where transactions are simple and self-contained.

3. Broadcast/Multicast Applications: Applications that need to send data to multiple recipients simultaneously.

4. Applications with Their Own Reliability Mechanisms: Applications that implement their own error checking, acknowledgment, and retransmission mechanisms.

Advantages of UDP

1. Speed: Without the overhead of connection establishment, flow control, and extensive error checking, UDP can transmit data more quickly.

2. Efficiency: Lower overhead means more of the network bandwidth is used for actual data rather than protocol information.

3. Simplicity: The protocol is straightforward to implement and requires less state management.

4. Latency: UDP typically has lower latency due to the absence of acknowledgments and retransmissions.

5. Flexibility: Applications have more control over when data is sent and can implement custom reliability mechanisms if needed.

Limitations of UDP

1. Unreliability: No guarantee of packet delivery, ordering, or protection against duplication.

2. No Flow Control: Can overwhelm receivers or network devices if sending too fast.

3. No Congestion Control: Does not adapt to network congestion, potentially contributing to network collapse.

4. Limited Error Recovery: Only provides a checksum for error detection, with no built-in recovery mechanisms.

5. Firewall Issues: Many firewalls and NAT devices block UDP traffic by default, requiring special configuration.

Common Applications Using UDP

Many important internet applications and protocols use UDP:

• DNS (Domain Name System): For translating domain names to IP addresses
• DHCP (Dynamic Host Configuration Protocol): For automatic IP address assignment
• SNMP (Simple Network Management Protocol): For network management
• RTP (Real-time Transport Protocol): For delivering audio and video over IP networks
• VoIP (Voice over IP): For internet telephony
• Online Gaming: For real-time multiplayer games
• TFTP (Trivial File Transfer Protocol): For simple file transfers
• NTP (Network Time Protocol): For clock synchronization

UDP Socket Programming

For detailed information about UDP socket programming and implementation examples, please refer to our comprehensive guide:

UDP Sockets in Socket Programming

This guide covers:

• Creating UDP sockets
• Sending and receiving datagrams
• Handling errors in UDP communication
• Complete code examples in various programming languages

Conclusion

UDP is a simple, lightweight transport protocol that provides a minimal set of services for application processes. Its connectionless nature and low overhead make it ideal for applications where speed and efficiency are more important than reliability. While it lacks many of the reliability features of TCP, UDP's simplicity and low latency make it the protocol of choice for many real-time and multimedia applications.

Understanding when to use UDP versus TCP is an important consideration in network application design, as each protocol has distinct advantages and limitations that make it suitable for different types of applications.
