Dynamic Domain Name System (DDNS)

When the Domain Name System (DNS) was originally designed, it wasn't anticipated that there would be so many address changes such as adding new hosts, removing hosts, or changing IP addresses. When changes occur, they must be made to the DNS master file, which traditionally required manual updating. Dynamic Domain Name System (DDNS) was developed to address this limitation.

What is DDNS?

Dynamic Domain Name System (DDNS) is a method of automatically updating a name server in the Domain Name System, often in real-time, with the active DDNS configuration of its configured hostnames, addresses, or other information. This allows devices with changing IP addresses to maintain a consistent domain name that users can access.

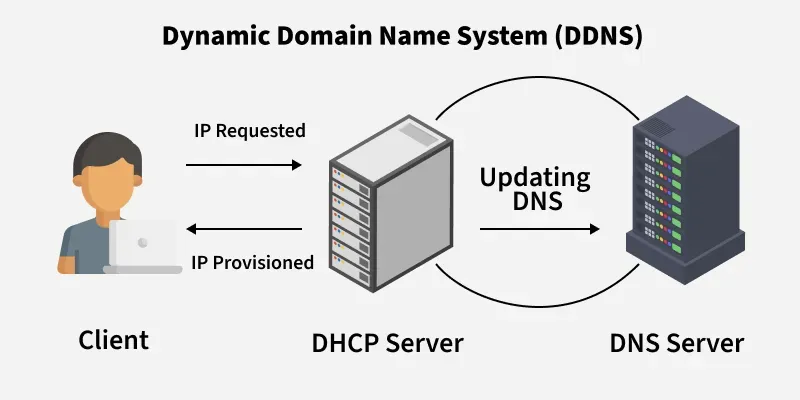

How Does DDNS Work?

DDNS operates through a series of steps that enable devices with changing IP addresses to maintain a consistent hostname:

1. Assigning an IP Address

When a device connects to a network, the Dynamic Host Configuration Protocol (DHCP) assigns it an IP address. This happens dynamically, meaning the IP address can change over time, especially in home networks where ISPs use dynamic IP allocation.

2. Updating the Primary DNS Server

Once a device's IP address is assigned, the DDNS client (often built into a router or installed as software) detects the new IP address and sends an update request to the Primary DNS Server.

The request contains the hostname (e.g., myhome.dyndns.org) and the updated IP address.

3. Zone Updates and Notification

The Primary DNS Server updates its records (DNS zone file) with the new IP address.

To ensure consistency, Secondary DNS Servers (backup DNS servers) also need to be updated. This happens in one of two ways:

1. Active Notification: The primary DNS server actively sends an update message to secondary servers.
2. Passive Notification: Secondary DNS servers periodically check the primary server for any changes and update their records accordingly.

4. Zone Transfer

After receiving the update notification, secondary DNS servers request the updated zone data from the primary server through a zone transfer. This ensures that DNS records across different servers remain synchronized.

5. Maintaining Security with Authentication

Since DDNS allows automatic updates, security measures must be in place to prevent unauthorized changes. DDNS can use authentication methods such as:

1. TSIG (Transaction Signature): A cryptographic key that ensures updates are legitimate.
2. Secure DDNS (DNSSEC): Adds an extra layer of verification to DNS updates.

6. User Access Through a Hostname

Once the IP update is completed, users can access their devices remotely using a consistent hostname (e.g., myhome.dyndns.org).

Even if the IP address changes again, the DDNS system updates it automatically, ensuring uninterrupted access to network resources like security cameras, home servers, and remote desktop connections.

Example of DDNS in Action

Imagine a user setting up remote access to their home security camera system:

1. The router is assigned a dynamic IP address (123.45.67.89) by the ISP.
2. The DDNS client updates the DNS record so that myhome.dyndns.org points to 123.45.67.89.
3. If the ISP later changes the IP to 98.76.54.32, the DDNS client detects the change and updates the DNS records accordingly.
4. Now, when the user accesses myhome.dyndns.org, it always resolves to the current IP address, allowing seamless remote access.

Advantages of Using DDNS

1. Accessibility: DDNS allows users to connect to devices on their home network from anywhere in the world, using a hostname instead of a constantly changing IP address.

2. Convenience: DDNS eliminates the need to manually update IP addresses, which can be a tedious and time-consuming task.

3. Compatibility: DDNS is compatible with a wide range of devices and services, including Remote Desktops, FTP, and VPN, making it easy to connect to a variety of devices on a home network.

4. Ease of use: DDNS services are often easy to set up and use, with user-friendly interfaces and clear instructions.

5. Dynamic IP support: DDNS allows devices on a network to have dynamic IP addresses, which are assigned by the router and can change over time.

6. Cost-effective: Many DDNS providers offer free service, making it a cost-effective solution for enabling remote access to devices on a home network.

7. Backup solution: DDNS service can be used as a backup solution for static IP addresses, in case the static IP address is lost.

Disadvantages of Using DDNS

1. Reliability concerns: DDNS services rely on the availability of the DDNS provider's servers. If the provider's servers are down, the hostname will not resolve to the correct IP address.

2. Security implications: Because DDNS services link a hostname to a dynamic IP address, it can potentially make it easier for hackers to find and target specific devices on a home network.

3. Cost for premium services: Some DDNS providers charge a fee for their premium services, and the cost can add up over time.

4. Latency issues: Some DDNS providers may experience latency issues when trying to update the IP address associated with a hostname, causing delays in connecting to devices.

5. Limited control: DDNS services are often operated by third-party companies, which means that users have limited control over the settings and configuration of the service.

Common Use Cases of DDNS

1. Remote access to home network resources: DDNS enables users to access computers, cameras, and file servers from outside their home network.

2. Internet access devices: It is commonly used for routers and other devices that provide internet access.

3. Security appliances: DDNS is often required for IP-based security appliances like DVRs and security camera systems.

4. Personal websites and web servers: Running a personal website or web server from a home internet connection becomes feasible with DDNS.

5. VPN connections: Setting up a VPN or secure proxy connection to a home network is simplified with DDNS.

6. Home automation systems: DDNS enables access to home automation systems and Internet of Things (IoT) devices.

7. Gaming and application hosting: DDNS facilitates gaming and application hosting from a home network.

Popular DDNS Service Providers

Several companies offer DDNS services, with varying features and pricing models:

1. No-IP: Offers both free and paid DDNS services with multiple hostnames and domains.

2. DynDNS: One of the original DDNS providers, now offering premium services.

3. Duck DNS: A free DDNS service that provides subdomains under the duckdns.org domain.

4. Afraid.org: Offers free DNS hosting and dynamic DNS services.

5. Router-integrated services: Many modern routers come with built-in DDNS clients that support various DDNS providers.

Setting Up DDNS

Setting up DDNS typically involves the following steps:

1. Choose a DDNS provider: Select a provider that meets your needs in terms of features, reliability, and cost.

2. Create an account: Sign up for an account with the chosen DDNS provider.

3. Select a hostname: Choose a hostname that will be used to access your devices (e.g., myhome.dyndns.org).

4. Configure your router or DDNS client: Set up your router's built-in DDNS client or install a DDNS client on a device in your network.

5. Enter your DDNS credentials: Input your DDNS account information and hostname into the client.

6. Test the connection: Verify that your hostname resolves to your current IP address and that you can access your devices remotely.

Conclusion

Dynamic Domain Name System (DDNS) is a valuable technology that bridges the gap between the static nature of domain names and the dynamic reality of IP address assignment. By automatically updating DNS records when IP addresses change, DDNS enables consistent access to devices and services, regardless of their underlying network configuration.

For home users, small businesses, and anyone operating services on networks with dynamic IP addresses, DDNS provides a practical solution that enhances accessibility and simplifies remote connections. Despite some limitations, the benefits of DDNS make it an essential tool in modern networking, particularly as the number of internet-connected devices continues to grow.
