Data Link Layer in OSI Model

The Data Link Layer is the second layer from the bottom in the OSI (Open System Interconnection) network architecture model. It is responsible for the node-to-node delivery of data within the same local network. Its major role is to ensure error-free transmission of information. The Data Link Layer is also responsible for encoding, decoding, and organizing the outgoing and incoming data.

This layer is considered one of the most complex layers of the OSI model as it hides all the underlying complexities of the hardware from the other layers above it.

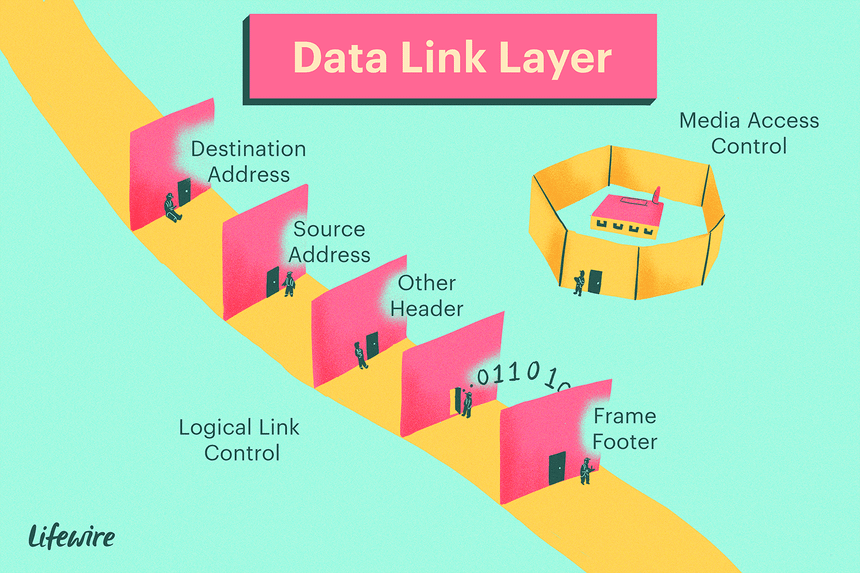

Sub-Layers of The Data Link Layer

The Data Link Layer is further divided into two sub-layers:

Logical Link Control (LLC)

This sublayer of the data link layer deals with:

• Multiplexing
• Flow of data among applications and other services
• Providing error messages and acknowledgments

Media Access Control (MAC)

The MAC sublayer:

• Manages device interaction
• Is responsible for addressing frames
• Controls physical media access
• Receives packets from the Network layer and divides them into frames
• Sends frames bit-by-bit to the underlying physical layer

Functions of The Data Link Layer

The Data Link Layer performs several critical functions:

1. Framing: Divides the stream of bits received from the network layer into manageable data units called frames.

2. Physical Addressing: Adds a header to the frame to identify the sender and/or receiver of the frame.

3. Flow Control: Prevents a fast sender from overwhelming a slow receiver by regulating the data flow.

4. Error Control: Detects and retransmits damaged or lost frames, and prevents duplication of frames.

5. Access Control: Determines which device has control over the link when multiple devices are connected to the same physical medium.

Protocols in Data Link Layer

Several protocols operate at the Data Link Layer:

• Synchronous Data Link Protocol (SDLC): A protocol developed by IBM for use in Systems Network Architecture (SNA) environments.

• High-Level Data Link Protocol (HDLC): A bit-oriented code-transparent synchronous data link layer protocol developed by the International Organization for Standardization (ISO).

• Serial Line Interface Protocol (SLIP): A mostly obsolete protocol used for point-to-point serial connections using TCP/IP.

• Point to Point Protocol (PPP): A protocol used for establishing a direct connection between two nodes. It can provide connection authentication, transmission encryption, and compression.

• Link Access Procedure (LAP): A family of data link layer protocols for use on point-to-point and multipoint communications links.

• Link Control Protocol (LCP): A protocol that establishes, configures, and tests data-link connections for use by PPP.

• Network Control Protocol (NCP): A protocol that establishes and configures different network-layer protocols for use by PPP.

Devices Operating at the Data Link Layer

1. Switch

• A key device in the Data Link Layer
• Uses MAC addresses to forward data frames to the correct device within a network
• Works in local area networks (LANs) to connect multiple devices

2. Bridge

• Connects two or more LANs, creating a single, unified network
• Operates at the Data Link Layer by forwarding frames based on MAC addresses
• Used to reduce network traffic and segment a network

3. Network Interface Card (NIC)

• A hardware component in devices like computers and printers
• Responsible for adding the MAC address to frames and ensuring proper communication with the network
• Operates at the Data Link Layer by preparing and sending frames over the physical medium

4. Wireless Access Point (WAP)

• Allows wireless devices to connect to a wired network
• Operates at the Data Link Layer by managing wireless MAC addresses
• Uses protocols like Wi-Fi (IEEE 802.11) to communicate with devices

Key Topics in Data Link Layer

In the following sections, we will explore several important aspects of the Data Link Layer:

1. Error Detection and Correction - Methods to identify and fix transmission errors
2. Flow Control and Error Control Protocols - Techniques to manage data flow and handle errors
3. Medium Access Control - Protocols for managing access to shared communication channels

Each of these topics plays a crucial role in ensuring reliable and efficient data transmission at the Data Link Layer.
