Transmission Control Protocol (TCP)

The Transmission Control Protocol (TCP) is a connection-oriented transport protocol that provides reliable, ordered, and error-checked delivery of data between applications running on hosts communicating over an IP network. TCP is one of the core protocols of the Internet Protocol Suite and operates at the Transport Layer of the OSI model.

Key Characteristics of TCP

TCP is characterized by several important features:

1. Connection-Oriented: TCP establishes a connection before data transfer begins and terminates it when communication is complete.

2. Reliable Delivery: TCP ensures that all data is delivered to the destination without errors, in the correct order, and without duplication.

3. Flow Control: TCP prevents a fast sender from overwhelming a slow receiver by regulating the rate of data transmission.

4. Congestion Control: TCP monitors network congestion and adjusts transmission rates to help prevent network collapse.

5. Full-Duplex Communication: TCP allows simultaneous data transmission in both directions.

6. Byte-Stream Oriented: TCP treats data as a continuous stream of bytes rather than discrete messages.

7. Error Detection and Correction: TCP includes mechanisms to detect errors and request retransmission of corrupted or lost segments.

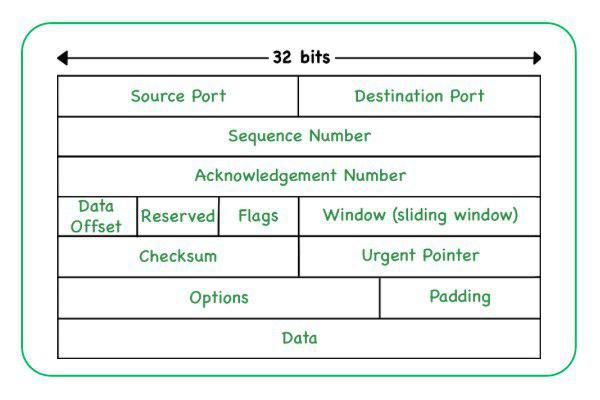

TCP Header Format

The TCP header is more complex than UDP, consisting of several fields that support its reliability and connection management features:

TCP Connection Management

TCP uses a three-way handshake to establish connections and a four-way handshake to terminate them:

Connection Establishment (Three-Way Handshake)

1. SYN: Client sends a segment with SYN flag set and an initial sequence number (ISN)
2. SYN-ACK: Server responds with SYN and ACK flags set, its own ISN, and acknowledgment of client's ISN+1
3. ACK: Client acknowledges server's ISN+1, completing the connection establishment

Connection Termination (Four-Way Handshake)

1. FIN: One end sends a segment with FIN flag set
2. ACK: The other end acknowledges the FIN
3. FIN: The other end sends its own FIN
4. ACK: The first end acknowledges the FIN, completing the connection termination

TCP Reliability Mechanisms

TCP employs several mechanisms to ensure reliable data delivery:

Acknowledgments and Retransmission

• Receiver acknowledges received segments
• Sender retransmits segments that aren't acknowledged within a timeout period
• Selective acknowledgments (SACK) allow receivers to acknowledge non-contiguous blocks of data

Sequence Numbers

• Each byte of data is assigned a sequence number
• Allows receiver to reassemble segments in the correct order
• Helps detect duplicate segments

Checksum

• Covers the TCP header and data
• Detects corruption during transmission
• Corrupted segments are discarded and eventually retransmitted

TCP Flow Control

Flow control prevents a fast sender from overwhelming a slow receiver:

• Receiver advertises a "window size" indicating how many bytes it can buffer
• Sender limits unacknowledged data to the advertised window size
• Window size can change dynamically based on receiver's buffer availability
• Zero window size pauses transmission until receiver can accept more data

TCP Congestion Control

Congestion control prevents network overload:

Slow Start

• Begins with a small congestion window
• Exponentially increases the window size until reaching a threshold or detecting congestion

Congestion Avoidance

• Linearly increases the congestion window after reaching the threshold
• More cautious growth to avoid triggering congestion

Fast Retransmit and Fast Recovery

• Detects packet loss through duplicate ACKs
• Retransmits lost segments without waiting for timeout
• Adjusts congestion window to avoid drastic reduction

When to Use TCP

TCP is particularly well-suited for:

1. Applications Requiring Reliability: File transfers, email, web browsing, and any application where data integrity is critical.

2. Applications Needing Ordered Delivery: Applications where the sequence of data matters.

3. Applications with Variable-Length Messages: Applications that send data of different sizes.

4. Applications Requiring Flow Control: Applications where the receiver might not be able to process data as quickly as the sender can send it.

Advantages of TCP

1. Reliability: Guarantees delivery of all data without errors.

2. Ordered Delivery: Ensures data arrives in the same order it was sent.

3. Flow and Congestion Control: Prevents overwhelming receivers and network congestion.

4. Error Detection and Correction: Identifies and recovers from transmission errors.

5. Adaptability: Adjusts to network conditions and capabilities.

Limitations of TCP

1. Overhead: Connection establishment, maintenance, and reliability mechanisms add overhead.

2. Latency: Acknowledgments and retransmissions can increase latency.

3. Head-of-Line Blocking: Delayed segments hold up delivery of subsequent segments.

4. Resource Consumption: Maintains connection state, requiring memory and processing resources.

5. Not Suitable for Real-Time Applications: The reliability mechanisms can introduce delays unacceptable for some real-time applications.

Common Applications Using TCP

Many critical internet applications and protocols use TCP:

• HTTP/HTTPS: For web browsing
• SMTP, POP3, IMAP: For email
• FTP: For file transfers
• SSH: For secure remote login
• Telnet: For remote terminal access
• MQTT: For IoT messaging
• Database Access: For client-server database interactions

TCP Socket Programming

For detailed information about TCP socket programming and implementation examples, please refer to our comprehensive guide:

TCP Sockets in Socket Programming

This guide covers:

• Creating TCP sockets
• Establishing connections
• Sending and receiving data
• Handling errors in TCP communication
• Complete code examples in various programming languages

Conclusion

TCP is a sophisticated transport protocol that provides reliable, ordered delivery of data between applications. Its connection-oriented nature and comprehensive reliability mechanisms make it the protocol of choice for applications where data integrity is critical. While it introduces more overhead than UDP, TCP's reliability features make it essential for many internet applications.

Understanding the intricacies of TCP is crucial for network application development, troubleshooting network issues, and optimizing network performance.
