Quality of Service (QoS) in Transport Layer

Quality of Service (QoS) refers to the overall performance of a network, particularly the performance experienced by users of the network. In the context of the Transport Layer, QoS involves mechanisms and techniques to provide different priorities to different applications, users, or data flows, or to guarantee a certain level of performance to a data flow.

The Need for Quality of Service

In traditional IP networks, all packets are treated equally, following a "best-effort" delivery model. However, this approach has limitations:

1. Diverse Application Requirements: Different applications have different network requirements:

   • Video conferencing requires low latency and jitter
   • File transfers need high throughput but can tolerate delay
   • VoIP calls require consistent, low-latency delivery
   • Critical applications need guaranteed bandwidth

2. Limited Resources: Network resources (bandwidth, buffer space, processing capacity) are finite and must be allocated efficiently.

3. Congestion Effects: During congestion, all traffic suffers equally in a best-effort network, regardless of importance.

4. Business Requirements: Organizations may need to prioritize certain types of traffic based on business importance.

QoS mechanisms address these challenges by providing ways to differentiate and prioritize traffic.

QoS Parameters

Several key parameters define the quality of service for network traffic:

1. Bandwidth

• The data transfer capacity of a network
• Measured in bits per second (bps)
• Different applications require different amounts of bandwidth:
  • Standard definition video: 1-2 Mbps
  • High definition video: 5-8 Mbps
  • 4K video: 15-25 Mbps
  • VoIP: 30-150 Kbps

2. Delay (Latency)

• The time taken for a packet to travel from source to destination
• Measured in milliseconds (ms)
• Includes:
  • Propagation delay: Time for signal to travel through the medium
  • Transmission delay: Time to push the packet onto the link
  • Queuing delay: Time spent in router queues
  • Processing delay: Time for routers to process the packet header

3. Jitter

• Variation in packet delay
• Measured in milliseconds (ms)
• Critical for real-time applications like voice and video
• High jitter can cause stuttering or choppy playback

4. Packet Loss

• Percentage of packets that fail to reach their destination
• Caused by network congestion, buffer overflow, or transmission errors
• Different applications have different tolerance for packet loss:
  • File transfers: Very low tolerance (require 100% delivery)
  • Voice: Can tolerate 1-2% loss
  • Video: Can tolerate 1-3% loss depending on encoding

5. Reliability

• Consistency of the above parameters over time
• Measured by availability percentage or mean time between failures
• Critical for business applications and services

QoS Requirements for Different Applications

Different types of applications have different QoS requirements:

QoS Mechanisms in the Transport Layer

The Transport Layer implements several mechanisms to support QoS:

1. Connection-Oriented Service

TCP provides a connection-oriented service that includes:

• Reliable delivery through acknowledgments and retransmissions
• Flow control to prevent overwhelming receivers
• Congestion control to adapt to network conditions

2. Differentiated Services

Transport protocols can mark packets with different service classes:

• TCP and UDP can use different port numbers to identify application types
• SCTP can prioritize different streams within an association

3. Resource Reservation

Some transport protocols support resource reservation:

• SCTP can allocate different resources to different streams
• Real-time Transport Protocol (RTP) works with Resource Reservation Protocol (RSVP)

4. Traffic Shaping

Transport Layer can implement traffic shaping to control the rate of data transmission:

• Leaky Bucket Algorithm
• Token Bucket Algorithm

QoS Architectures

Several architectures have been developed to provide QoS in IP networks:

1. Integrated Services (IntServ)

• Resource reservation model
• Applications request specific QoS parameters
• Network reserves resources along the entire path
• Uses RSVP (Resource Reservation Protocol)
• Provides guaranteed service levels
• Challenges: Scalability issues in large networks

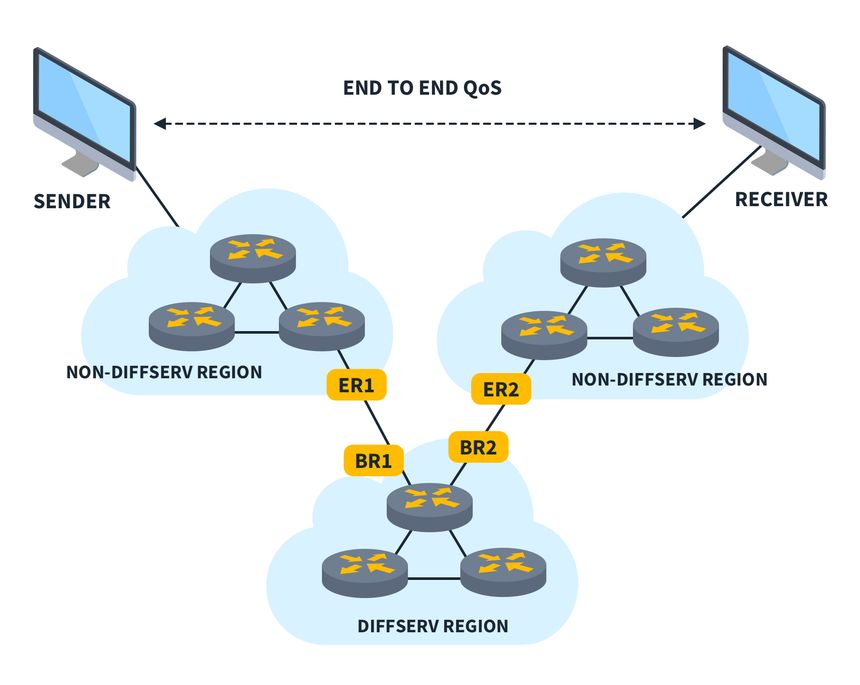

2. Differentiated Services (DiffServ)

• Class-based traffic management
• Packets marked with different service classes
• Routers handle packets based on their class
• More scalable than IntServ
• Provides relative rather than absolute QoS guarantees

3. MPLS (Multiprotocol Label Switching)

• Combines Layer 2 switching and Layer 3 routing
• Adds labels to packets for efficient forwarding
• Supports traffic engineering and explicit routing
• Can be combined with DiffServ for enhanced QoS

QoS Implementation Techniques

Several techniques are used to implement QoS:

1. Classification and Marking

• Identifying traffic types based on various criteria
• Marking packets with appropriate priority levels
• Can use:
  • IP Precedence or DSCP (DiffServ Code Point) in IP header
  • CoS (Class of Service) in Ethernet frames
  • MPLS EXP bits

2. Queuing and Scheduling

• Managing how packets are stored and forwarded
• Common queuing mechanisms:
  • FIFO (First In, First Out): Simple but no differentiation
  • PQ (Priority Queuing): Strict priority for important traffic
  • WFQ (Weighted Fair Queuing): Balanced service based on weights
  • CBWFQ (Class-Based Weighted Fair Queuing): WFQ applied to traffic classes
  • LLQ (Low Latency Queuing): Combines CBWFQ with priority queue for delay-sensitive traffic

3. Congestion Avoidance

• Preventing queue overflow before it occurs
• Techniques include:
  • RED (Random Early Detection): Drops packets probabilistically as queue fills
  • WRED (Weighted Random Early Detection): Applies different drop probabilities to different traffic classes

4. Traffic Shaping and Policing

• Controlling the rate of traffic flow
• Shaping: Buffers excess traffic and releases it later
• Policing: Drops or remarks excess traffic
• Implemented using algorithms like Leaky Bucket and Token Bucket

5. Link Efficiency Mechanisms

• Maximizing the effective use of available bandwidth
• Techniques include:
  • Compression: Reducing the size of headers or payloads
  • Link Fragmentation and Interleaving (LFI): Breaking large packets into smaller ones

Challenges in QoS Implementation

Implementing effective QoS faces several challenges:

1. End-to-End QoS: Ensuring consistent QoS across multiple network domains

2. Complexity: QoS mechanisms add complexity to network design and management

3. Overhead: Some QoS mechanisms introduce additional processing and bandwidth overhead

4. Changing Requirements: Application requirements evolve over time

5. Monitoring and Measurement: Accurately measuring QoS parameters can be difficult

QoS in Modern Networks

QoS continues to evolve in modern network environments:

Software-Defined Networking (SDN)

• Centralized control of network resources
• Dynamic QoS policy implementation
• Programmable QoS based on application needs

Network Function Virtualization (NFV)

• Virtualized QoS functions
• Flexible deployment of QoS services
• Scalable QoS implementation

5G Networks

• Built-in QoS mechanisms
• Network slicing for different service types
• Ultra-reliable low-latency communication (URLLC)

Conclusion

Quality of Service is essential for ensuring that critical applications receive the network resources they need to function properly. The Transport Layer plays a crucial role in QoS by providing mechanisms for reliable delivery, flow control, congestion management, and traffic differentiation.

As networks continue to carry increasingly diverse traffic types with varying requirements, effective QoS implementation becomes more important. By understanding and applying appropriate QoS mechanisms, network designers and administrators can ensure that their networks deliver the performance needed by modern applications and services.
