Automatic Private IP Addressing (APIPA)

APIPA (Automatic Private IP Addressing) is a networking functionality that enables computers to automatically assign themselves an IP address when they are unable to acquire one from a DHCP server. This feature ensures that devices can still communicate on a local network even when the normal IP address assignment process fails.

What is APIPA?

APIPA is employed when a device that is intended to use DHCP for obtaining an IP address fails to connect with the DHCP server. In this case, it assigns itself an IP address from the APIPA range, which is between 169.254.0.1 and 169.254.255.254, with a subnet mask of 255.255.0.0.

This self-assigned IP address permits the device to communicate with other devices within the same local network that are also using APIPA addresses. However, APIPA-configured devices cannot establish connections beyond their local area networks nor have internet access.

APIPA is helpful in cases where setting up a DHCP server may not be possible or when network problems prevent devices from obtaining operational IP addresses temporarily. It offers a backup plan so that in case there is no DHCP server configured at all, information can still get across the local area network.

History of APIPA

Initially, the Internet Engineering Task Force (IETF) reserved the IPv4 address block 169.254.0.0/16 (169.254.0.0 – 169.254.255.255) for link-local addressing. Due to the simultaneous use of IPv4 addresses of different scopes, traffic overload becomes high.

The link-local addresses are allocated to the interface in a stateless manner such that communication will be established when not getting a response from the DHCP Server. After that, Microsoft referred to this address autoconfiguration method as "Automatic Private IP Addressing (APIPA)".

Automatic Configuration and Service Checks

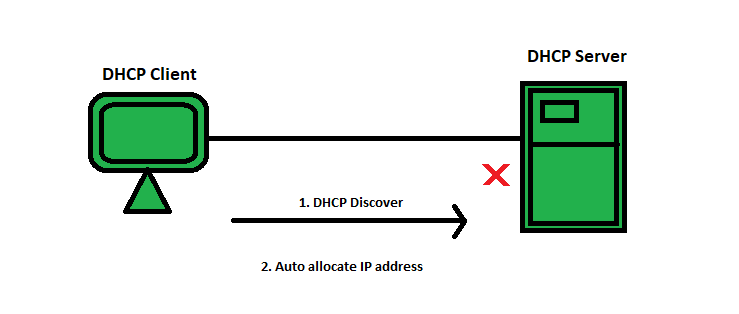

The APIPA process begins when a client is unable to find a DHCP server. At this point, APIPA configures the system with an IP address automatically. According to Microsoft, APIPA continues to check for the presence of a DHCP server every five minutes.

If APIPA detects a DHCP server on the network, it stops and allows the DHCP server to take over, replacing the APIPA-assigned address with a dynamically allocated address from the DHCP server.

ipconfig /all

Significance of APIPA

APIPA is important as it allows devices to communicate when the DHCP server is either down or misconfigured. With the help of APIPA, devices automatically choose their own IP address (within the range 169.254.0.1 to 169.254.255.254) and thus maintain network connection and communication.

Therefore, it prevents situations of losing connection in the network because of IP address assignment issues, thus sustaining uninterrupted linkages inside a local area network (LAN).

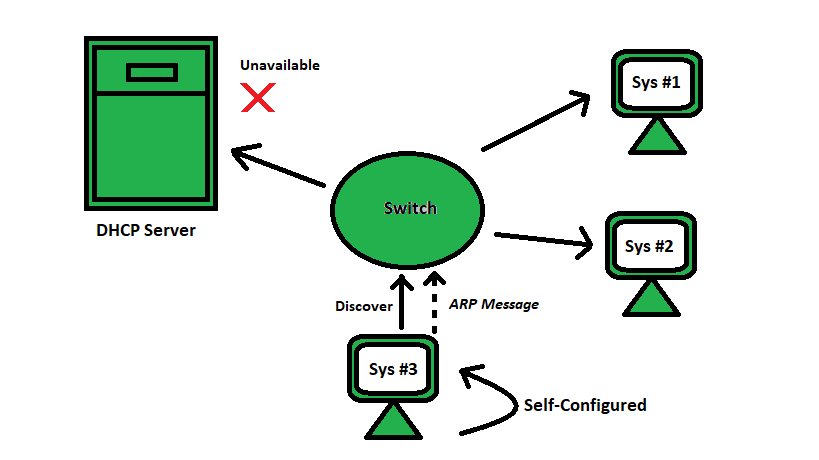

How Does APIPA Work?

When a device with APIPA activated cannot connect to a DHCP server to obtain an IP address, it follows these steps:

1. The device first attempts to contact a DHCP server to obtain an IP address.
2. If no DHCP server responds after several attempts, the device initiates the APIPA process.
3. The device randomly selects an IP address from the range 169.254.0.1 to 169.254.255.254.
4. Before using this address, the device performs an Address Resolution Protocol (ARP) check to ensure the address isn't already in use by another device on the network.
5. If the address is already in use, the device selects another address and repeats the ARP check.
6. Once a unique address is found, the device configures itself with this IP address and the subnet mask 255.255.0.0.
7. The device can now communicate with other devices on the local network that also have APIPA addresses.
8. The device continues to periodically check for a DHCP server (every 5 minutes). If one becomes available, it will abandon the APIPA address and use the one provided by the DHCP server.

Key Applications of APIPA

APIPA plays an important role when devices are unable to obtain an IP address from a DHCP server. Major applications of APIPA include:

Network Setup Ease

APIPA makes it easy to set up a network by allowing a device to self-assign an IP address from a specified range when it cannot communicate with a DHCP server. This eliminates the need for manual IP configuration, making network setup easier.

Network Fault Tolerance

APIPA ensures fault tolerance in the network in scenarios where DHCP servers are unavailable or misconfigured by allowing devices to self-assign an IP address. This helps in keeping the network alive for some time even if the DHCP services are disrupted.

Local Network Communication

APIPA provides an IP address to all devices on the network within the range 169.254.0.1 and 169.254.255.254 to facilitate local communication. Thus, device-to-device communication occurs over the local network, ensuring continuous data exchange in the absence of support from DHCP servers.

Troubleshooting and Testing

APIPA is useful in troubleshooting and testing network configurations. It helps network administrators test connectivity and discover DHCP server issues by observing how devices use self-configured IP addresses in the absence of DHCP services.

Home Networks and Small Offices

APIPA is extremely useful for home networks and small offices where running and maintaining DHCP servers might be impractical. It provides an easy and efficient solution by which devices may connect to the network and communicate with each other locally without extensive network configuration.

Characteristics of APIPA

• Communication can be established properly even when not getting a response from a DHCP server.
• APIPA regularly checks the status of the main DHCP server at specific intervals.
• APIPA addresses are limited to local network communication only.
• Devices using APIPA addresses cannot access the internet or communicate with devices on different subnets.
• APIPA uses ARP to confirm that the selected IP address isn't currently in use by another device.

Advantages of APIPA

• It can be used as a backup when DHCP stops working, as APIPA has the ability to assign IP addresses to network hosts.
• It stops unwanted broadcasting by providing a functional IP address.
• It uses Address Resolution Protocol (ARP) to confirm the address isn't currently in use, preventing IP conflicts.
• It enables basic network communication without requiring manual configuration.
• It's particularly useful in small networks or temporary setups where a DHCP server might not be available.

Disadvantages of APIPA

• APIPA IP addresses can slow down your network due to the continued attempts to find a DHCP server.
• APIPA does not provide a network gateway as DHCP does, limiting connectivity to the local network only.
• Devices with APIPA addresses cannot access the internet or communicate with devices on different subnets.
• APIPA can mask underlying network issues that should be addressed, such as DHCP server problems.
• It can create confusion for users who expect full network functionality but are limited to local communication only.

Limitations of APIPA

• APIPA addresses are restricted for use in local area networks only.
• APIPA-configured devices follow peer-to-peer communication rules.
• No internet access is available for devices using APIPA addresses.
• APIPA does not provide DNS server information, making domain name resolution impossible.
• APIPA does not provide default gateway information, preventing communication beyond the local subnet.

Conclusion

APIPA is a valuable feature in networking where devices can auto-assign an IP address from the 169.254.0.1 to 169.254.255.254 range when they cannot obtain this information from a DHCP server. This feature is extremely crucial for maintaining connectivity on the network when DHCP services are not available or have been misconfigured.

It simplifies network setup, introduces fault tolerance, allows local network communication, and aids in troubleshooting. APIPA is particularly useful for home networks and small offices where setting up and maintaining a DHCP server might be impractical.

Understanding how APIPA works and when to apply it helps users maintain network connectivity and communication in various network scenarios, even when the primary IP address assignment mechanism fails.
