Simple Network Management Protocol (SNMP)

Simple Network Management Protocol (SNMP) is a widely used protocol for network management and monitoring. It allows network administrators to monitor network performance, find and solve network problems, and plan for network growth.

What is SNMP?

SNMP is an application-layer protocol that facilitates the exchange of management information between network devices. It is part of the Internet Protocol Suite as defined by the Internet Engineering Task Force (IETF).

The protocol enables network administrators to:

• Monitor network performance
• Detect network faults or inappropriate access
• Configure remote devices
• Plan for network growth

SNMP Architecture

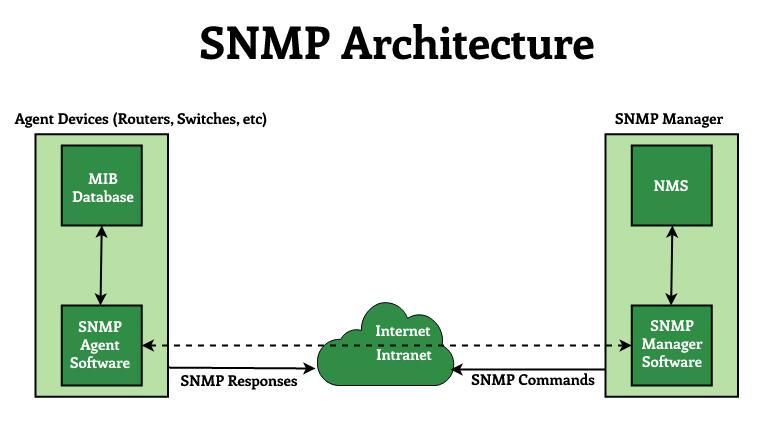

SNMP operates in a manager-agent architecture consisting of three key components:

1. SNMP Manager (Network Management System - NMS)

• Central system that monitors and controls the network
• Sends requests to agents and receives responses
• Processes and presents information to administrators
• Can send configuration changes to devices
• Examples: SolarWinds, PRTG, Nagios, Zabbix

2. SNMP Agent

• Software module running on managed devices (routers, switches, servers, etc.)
• Collects local management information
• Translates information into SNMP-compatible format
• Responds to requests from the SNMP manager
• Can send unsolicited alerts (traps) to the manager

3. Management Information Base (MIB)

• Hierarchical database of information about the managed device
• Organized in a tree structure with unique identifiers (OIDs)
• Defines the data that can be collected and modified
• Standardized for common information, but can be extended by vendors

How SNMP Works

SNMP operates through a series of messages exchanged between managers and agents:

Basic Operations

1. GET: Manager requests a specific piece of information from an agent
2. GETNEXT: Manager requests the next piece of information in the MIB hierarchy
3. GETBULK: Manager requests multiple pieces of information at once (SNMPv2 and later)
4. SET: Manager changes a value on the agent
5. RESPONSE: Agent responds to a request with the requested information
6. TRAP: Agent sends an unsolicited message to the manager about an event
7. INFORM: Like a trap, but requires acknowledgment (SNMPv2 and later)

Communication Process

1. The SNMP manager sends a request to the agent (typically using UDP port 161)
2. The agent processes the request and retrieves the requested information from its MIB
3. The agent sends a response back to the manager
4. For traps and informs, the agent initiates communication to the manager (typically using UDP port 162)

SNMP Versions

SNMP has evolved through several versions, each adding features and addressing limitations:

SNMPv1

• Original version defined in RFC 1157 (1988)
• Simple authentication using community strings
• Limited error handling
• Basic operations: GET, GETNEXT, SET, and TRAP
• No encryption, vulnerable to packet sniffing

SNMPv2c

• Community-based version of SNMPv2
• Improved performance with GETBULK operation
• Enhanced error handling
• Added INFORM operation (acknowledged traps)
• Still uses plaintext community strings for authentication
• No encryption

SNMPv3

• Current standard version (RFC 3411-3418)
• Significant security enhancements:
  • Authentication using MD5 or SHA
  • Privacy (encryption) using DES, AES, etc.
  • Message integrity checking
• Access control with user-based security model
• Maintains all functional enhancements from SNMPv2c

Management Information Base (MIB)

The MIB is a hierarchical database that defines the structure of management data for a device:

MIB Structure

• Organized as a tree structure
• Each node identified by an Object Identifier (OID)
• OIDs are sequences of numbers separated by dots (e.g., 1.3.6.1.2.1.1.3)
• Can also be represented by names (e.g., system.sysUpTime)

Common MIB Modules

• MIB-II (1.3.6.1.2.1): Standard information for TCP/IP devices

  • system: General system information
  • interfaces: Network interface information
  • ip: IP protocol statistics
  • tcp: TCP protocol statistics
  • udp: UDP protocol statistics

• Enterprise MIBs: Vendor-specific extensions

  • Cisco MIBs (1.3.6.1.4.1.9)
  • HP MIBs (1.3.6.1.4.1.11)
  • Microsoft MIBs (1.3.6.1.4.1.311)

MIB Browsers

MIB browsers are tools that allow administrators to:

• Load and view MIB definitions
• Browse the MIB tree structure
• Send SNMP requests to devices
• View and interpret responses

Examples include iReasoning MIB Browser, Paessler SNMP Tester, and SolarWinds MIB Browser.

SNMP Security

Security has been a significant concern with SNMP, especially in earlier versions:

Community Strings (SNMPv1 and SNMPv2c)

• Act like passwords for SNMP access
• Typically "public" for read-only access and "private" for read-write
• Transmitted in plaintext, easily intercepted
• Provide minimal security

SNMPv3 Security Features

• Authentication: Verifies the identity of the sender

  • User-based Security Model (USM)
  • Supports HMAC-MD5 and HMAC-SHA authentication

• Privacy: Encrypts SNMP messages

  • DES, AES-128, AES-192, AES-256 encryption options

• Access Control: Restricts what users can access

  • View-based Access Control Model (VACM)
  • Defines which MIB objects users can access and what operations they can perform

SNMP Monitoring and Management

SNMP is used for various monitoring and management tasks:

Common Monitoring Use Cases

1. Device Health Monitoring

   • CPU utilization
   • Memory usage
   • Temperature
   • Fan status
   • Power supply status

2. Network Performance Monitoring

   • Interface traffic (bandwidth utilization)
   • Packet errors and discards
   • Latency and packet loss
   • Connection statistics

3. Availability Monitoring

   • Device uptime
   • Service availability
   • Link status

Management Use Cases

1. Configuration Management

   • Changing device settings
   • Updating access control lists
   • Modifying routing parameters

2. Event Management

   • Receiving and processing alerts (traps)
   • Automated responses to events
   • Escalation procedures

3. Capacity Planning

   • Tracking resource utilization trends
   • Identifying bottlenecks
   • Planning for upgrades

Advantages and Limitations of SNMP

Advantages

• Widely Supported: Implemented on virtually all network devices
• Standardized: Common framework across different vendors
• Lightweight: Minimal impact on network and device resources
• Scalable: Can monitor thousands of devices from a single management station
• Extensible: Vendor-specific MIBs allow for specialized monitoring

Limitations

• Security Concerns: Especially in older versions (v1 and v2c)
• Limited Configuration Capabilities: Not as powerful as CLI or newer protocols like NETCONF
• UDP-Based: Can lead to lost messages in congested networks
• Complexity: MIB structure and OIDs can be difficult to understand
• Polling Overhead: Regular polling can generate significant traffic in large networks

Alternatives and Complementary Technologies

While SNMP remains widely used, several alternatives and complementary technologies exist:

• NETCONF: Network Configuration Protocol using XML
• RESTCONF: REST-based protocol for network device configuration
• gRPC: High-performance RPC framework
• Syslog: For event logging and notification
• Flow-based monitoring: NetFlow, sFlow, IPFIX for traffic analysis

Conclusion

SNMP continues to be a fundamental protocol for network monitoring and management despite its age. Its widespread support, standardization, and relative simplicity make it valuable for network administrators. While newer technologies address some of its limitations, SNMP remains relevant, especially with the security enhancements introduced in SNMPv3.

Understanding SNMP is essential for network administrators, IT operations staff, and anyone involved in managing network infrastructure. It provides the foundation for effective network monitoring, troubleshooting, and capacity planning.
