Firewalls

Firewalls are critical network security systems designed to monitor and control incoming and outgoing network traffic based on predetermined security rules. Acting as a barrier between a trusted internal network and untrusted external networks (like the Internet), firewalls block or allow data packets based on a set of security rules.

What is a Firewall?

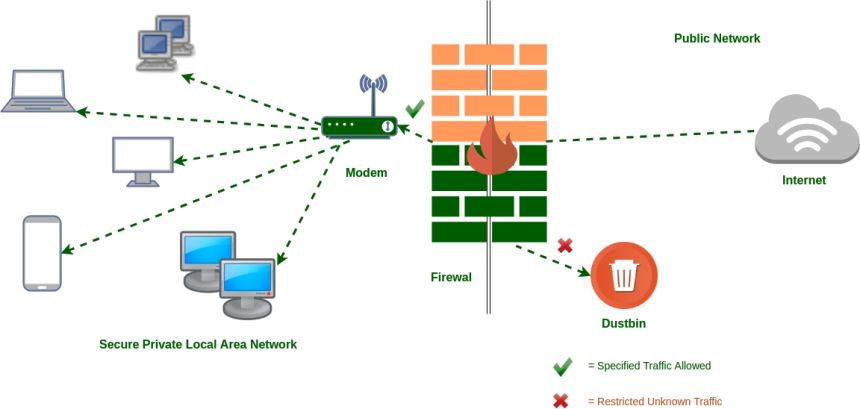

A firewall is a network security device or software that monitors and filters incoming and outgoing network traffic according to an organization's previously established security policies. At its most basic, a firewall is essentially the barrier that sits between a private internal network and the public Internet.

The primary purpose of a firewall is to allow non-threatening traffic in and to keep dangerous traffic out. Think of a firewall as a security guard at the entrance of a building, checking IDs and only allowing authorized personnel to enter or exit.

How Firewalls Work

Firewalls work by examining data packets—the basic units of communication over a network—that attempt to enter or leave a network:

1. Traffic Inspection: Examines the source and destination addresses, port numbers, and protocols of each packet
2. Rule Application: Applies predefined rules to determine whether to allow or block the packet
3. Logging: Records information about traffic, blocked attacks, and system activities
4. Alert Generation: Notifies administrators about suspicious activities or potential attacks

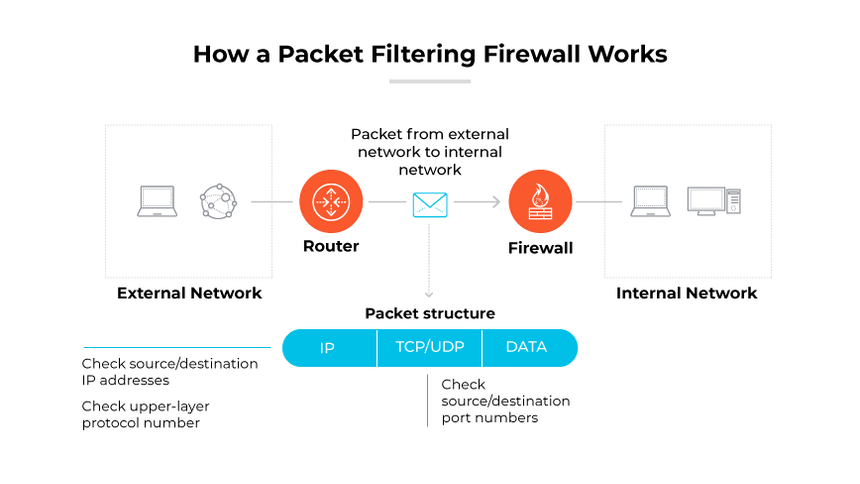

Packet Filtering Process

Types of Firewalls

Firewalls have evolved significantly over time, with different types offering varying levels of protection:

1. Packet-Filtering Firewalls

The most basic type of firewall that examines packets and prohibits or allows them based on source and destination IP addresses, ports, and protocols.

Characteristics:

• Operates at the network layer (Layer 3) of the OSI model
• Stateless inspection (doesn't track the state of connections)
• Fast and transparent
• Limited security capabilities

Example Rule: "Allow TCP packets from IP 192.168.1.5 to any destination on port 80 (HTTP)"

2. Stateful Inspection Firewalls

More advanced than simple packet filters, these firewalls track the state of active connections and make decisions based on the context of the traffic.

Characteristics:

• Remembers the state of connections (SYN, SYN-ACK, ACK)
• Can determine if a packet is part of an existing connection or a new one
• More secure than packet filters
• Requires more resources

Example: When a response comes back from a web server, the firewall checks if it corresponds to a previous outgoing request.

3. Proxy Firewalls (Application-Level Gateways)

Acts as an intermediary between internal and external systems, preventing direct connections.

Characteristics:

• Operates at the application layer (Layer 7)
• Terminates and rebuilds each connection
• Deep inspection of application-layer data
• Can perform content filtering
• Typically slower due to processing overhead

Example: A proxy firewall might inspect HTTP traffic for malicious content or block specific websites.

4. Next-Generation Firewalls (NGFW)

Modern firewalls that combine traditional firewall capabilities with additional features.

Characteristics:

• Deep packet inspection
• Intrusion prevention
• Application awareness and control
• User identity integration
• Threat intelligence integration

Example: An NGFW might identify and block a specific application (like unauthorized file sharing) even if it's using a standard allowed port.

5. Network Address Translation (NAT) Firewalls

Hides private IP addresses by allowing multiple devices to connect to the internet using a single public IP address.

Characteristics:

• Provides IP address conservation
• Adds a layer of security by hiding internal addresses
• Often combined with other firewall technologies

Example: A home router typically performs NAT, allowing multiple devices to share one internet connection.

6. Host-Based Firewalls

Software-based firewalls that run on individual hosts (computers) rather than as separate network devices.

Characteristics:

• Protects individual machines
• Can provide more granular control for specific applications
• Useful for mobile devices that connect to different networks

Example: Windows Defender Firewall, built into Windows operating systems.

7. Cloud Firewalls

Firewalls deployed in cloud environments to protect cloud-based assets.

Characteristics:

• Delivered as a service (FWaaS - Firewall as a Service)
• Scalable to meet changing demands
• Distributed architecture
• Integrated with cloud infrastructure

Example: AWS Network Firewall, Azure Firewall, Google Cloud Armor.

Firewall Architectures

Firewalls can be deployed in various configurations to meet different security requirements:

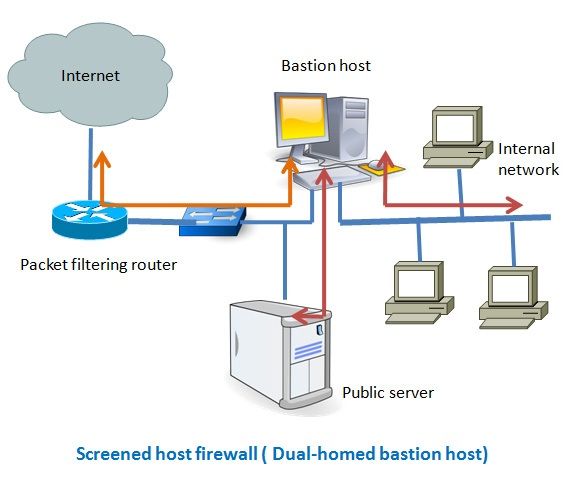

1. Screened Host Architecture

Uses a single firewall with a bastion host (a specialized computer designed to withstand attacks).

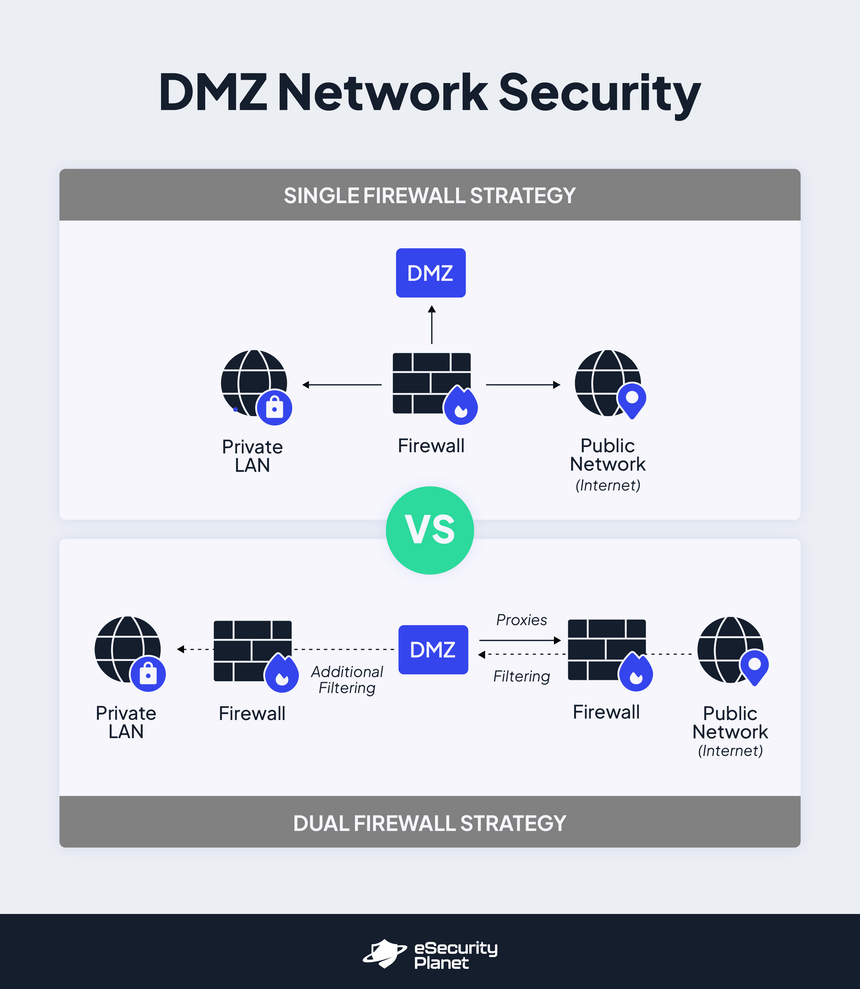

2. Screened Subnet (DMZ) Architecture

Creates a demilitarized zone (DMZ) between the internal network and the internet.

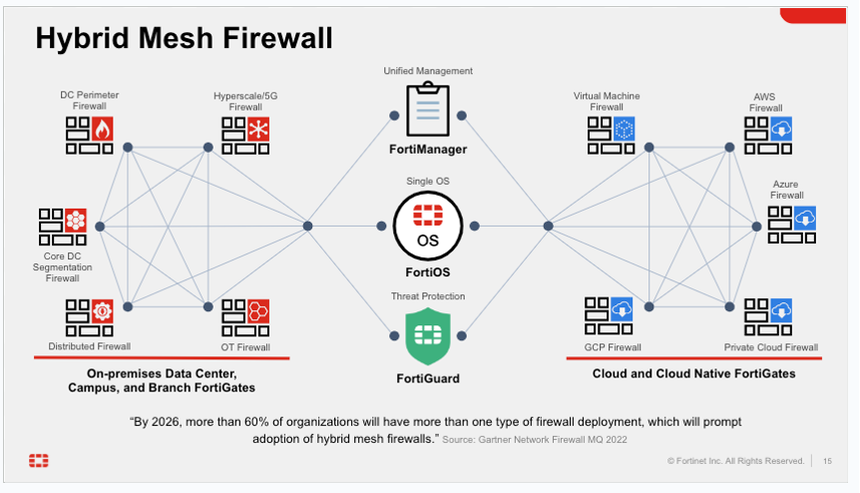

3. Multi-Layered Firewall Architecture

Implements multiple firewalls for defense in depth.

Firewall Rules and Policies

Firewall rules define the conditions under which traffic is allowed or denied:

Rule Components

• Source Address: Where the traffic originates
• Destination Address: Where the traffic is headed
• Protocol: The communication protocol (TCP, UDP, ICMP, etc.)
• Source Port: The port from which the traffic originates
• Destination Port: The port to which the traffic is headed
• Action: What to do with matching traffic (allow, deny, log)

Policy Types

1. Default Deny: Block everything except what is explicitly allowed

   • More secure approach
   • Requires careful configuration to avoid disrupting legitimate traffic

2. Default Allow: Allow everything except what is explicitly denied

   • Less secure but easier to implement initially
   • Can lead to security gaps

Example Firewall Rules

# Allow HTTP and HTTPS traffic to web server
allow tcp from any to 192.168.1.10 port 80,443

# Allow SSH access only from admin network
allow tcp from 10.0.1.0/24 to any port 22

# Block all telnet traffic
deny tcp from any to any port 23

# Allow established connections
allow tcp from any to any established

# Default policy
deny all from any to any

Firewall Limitations and Bypass Techniques

While firewalls are essential security tools, they have limitations:

Limitations

1. Cannot protect against authorized access: If credentials are compromised, a firewall won't stop an attacker using valid credentials
2. Limited protection against malware: Some malware can disguise itself as legitimate traffic
3. Insider threats: Cannot protect against malicious actions by internal users
4. Encrypted traffic: Difficulty inspecting encrypted communications without decryption
5. Zero-day exploits: Unknown vulnerabilities that haven't been patched

Common Bypass Techniques

1. Port Hopping: Changing ports to evade port-based filtering
2. Tunneling: Encapsulating blocked protocols within allowed ones
3. IP Spoofing: Falsifying the source IP address to appear trusted
4. Fragmentation: Breaking packets into smaller fragments to evade detection
5. Covert Channels: Using unexpected methods to transmit data

Firewall Best Practices

To maximize firewall effectiveness:

1. Follow the Principle of Least Privilege: Only allow what is necessary
2. Implement Defense in Depth: Use multiple security layers
3. Regular Updates: Keep firewall software and signatures updated
4. Proper Configuration: Carefully configure rules to avoid security gaps
5. Regular Audits: Review and test firewall rules periodically
6. Logging and Monitoring: Maintain and review logs for suspicious activities
7. Documentation: Document all firewall rules and changes
8. Change Management: Follow formal processes for firewall changes

Popular Firewall Solutions

Hardware Firewalls

• Cisco ASA (Adaptive Security Appliance): Enterprise-grade security appliances
• Palo Alto Networks: Next-generation firewalls with advanced threat prevention
• Fortinet FortiGate: Unified threat management appliances
• Check Point: Enterprise security solutions
• SonicWall: Security solutions for small to medium businesses

Software Firewalls

• pfSense: Open-source firewall and router
• OPNsense: Open-source, easy-to-use firewall based on FreeBSD
• IPFire: Linux-based open-source firewall distribution
• Untangle NG Firewall: Network security software for small to medium businesses

Cloud Firewalls

• AWS Network Firewall: Managed firewall service for Amazon VPCs
• Azure Firewall: Cloud-native firewall as a service
• Google Cloud Armor: DDoS protection and WAF for Google Cloud
• Cloudflare Magic Firewall: Network-level firewall delivered via Cloudflare's edge

Conclusion

Firewalls remain a fundamental component of network security, serving as the first line of defense against network-based threats. As cyber threats continue to evolve, firewalls have adapted with more sophisticated capabilities, moving beyond simple packet filtering to include deep packet inspection, application awareness, and integration with threat intelligence.

While no single security measure is sufficient on its own, a properly configured firewall is an essential part of a comprehensive security strategy. When combined with other security controls like intrusion detection systems, endpoint protection, and security awareness training, firewalls help create a robust defense against the ever-changing landscape of cyber threats.

Understanding firewall concepts, types, and best practices is crucial for network administrators, security professionals, and anyone responsible for protecting digital assets in today's interconnected world.
