Reverse Address Resolution Protocol (RARP)

Reverse Address Resolution Protocol (RARP) is a network protocol used to obtain an IP address for a given MAC address. It operates in the opposite direction of ARP, which maps IP addresses to MAC addresses. RARP was primarily used by diskless workstations that needed to discover their IP addresses during the boot process.

How RARP Works

RARP operates through the following steps:

1. RARP Request: A client device broadcasts a RARP request containing its MAC address to all devices on the local network.

2. RARP Server Processing: A RARP server (or multiple servers) on the network maintains a database of MAC-to-IP mappings. When it receives a RARP request, it looks up the MAC address in its database.

3. RARP Reply: If the MAC address is found, the RARP server sends a RARP reply containing the corresponding IP address back to the requesting device.

4. IP Configuration: The client device receives the reply and configures itself with the provided IP address.

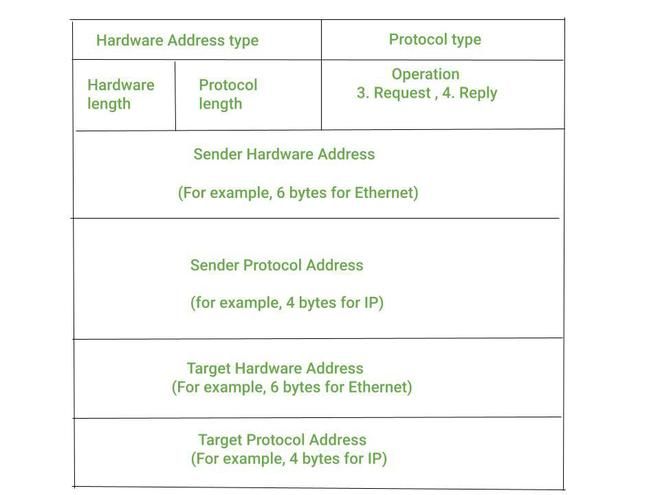

RARP Packet Format

The RARP packet format is similar to the ARP packet format, with the following fields:

RARP Server Requirements

For RARP to function properly, the following requirements must be met:

1. RARP Server: At least one RARP server must be present on each physical network segment.

2. MAC-to-IP Database: The RARP server must maintain a database mapping MAC addresses to IP addresses.

3. Administrative Setup: Network administrators must configure the RARP server with the appropriate mappings.

Limitations of RARP

RARP had several significant limitations that led to its eventual replacement:

1. Limited Information: RARP only provides an IP address, with no additional network configuration information like subnet mask, default gateway, or DNS servers.

2. Layer 2 Dependency: RARP operates at the Data Link Layer (Layer 2), making it difficult to use across routers or different network segments.

3. Multiple Servers: Each network segment requires its own RARP server, increasing administrative overhead.

4. Static Configuration: RARP requires manual configuration of MAC-to-IP mappings, making it difficult to scale.

Replacement Protocols

Due to its limitations, RARP has been largely replaced by more advanced protocols:

1. BOOTP (Bootstrap Protocol): Extends RARP functionality by providing additional configuration information and working across routers.

2. DHCP (Dynamic Host Configuration Protocol): Further extends BOOTP with dynamic address allocation, lease times, and additional configuration options.

3. IPv6 Stateless Address Autoconfiguration: In IPv6 networks, devices can automatically configure their own IP addresses without the need for a server.

Historical Significance

Despite being largely obsolete today, RARP played an important role in the evolution of network protocols:

• It was one of the first protocols to address the need for automatic IP address configuration.
• It highlighted the importance of bidirectional address resolution (both IP-to-MAC and MAC-to-IP).
• Its limitations directly influenced the development of more sophisticated protocols like BOOTP and DHCP.

Comparison with ARP

Conclusion

While RARP is no longer commonly used in modern networks, understanding its principles and limitations provides valuable insight into the evolution of network protocols. The challenges addressed by RARP—particularly the need for automatic IP address configuration—remain relevant today, though they are now solved by more sophisticated protocols like DHCP.
