Random Access Protocols

Random Access Protocols are a category of Medium Access Control (MAC) protocols where devices can transmit data whenever they have data to send, without a predetermined schedule. These protocols are particularly useful in networks with bursty traffic, where devices may not always have data to transmit.

What are Random Access Protocols?

Random Access Protocols allow devices to access the shared medium (such as a wireless channel or a wired bus) in a decentralized manner. Each device makes its own decision about when to transmit, without coordination from a central controller. If multiple devices transmit simultaneously, a collision occurs, and the protocol includes mechanisms to detect and resolve these collisions.

Key Characteristics of Random Access Protocols

1. Decentralized: No central controller is needed to coordinate transmissions.

2. On-Demand Access: Devices can transmit whenever they have data to send.

3. Collision Handling: The protocol includes mechanisms to detect and resolve collisions.

4. Probabilistic Performance: The performance of random access protocols is probabilistic, depending on factors such as the number of active devices and the traffic pattern.

Types of Random Access Protocols

There are several types of random access protocols, each with its own approach to handling collisions:

1. ALOHA

ALOHA is one of the earliest random access protocols, developed at the University of Hawaii in the early 1970s. It comes in two variants:

Pure ALOHA

In Pure ALOHA:

• Devices transmit whenever they have data to send, without checking if the medium is free.
• If a collision occurs, devices wait for a random amount of time before retransmitting.
• The maximum channel utilization is about 18.4%.

Slotted ALOHA

Slotted ALOHA improves upon Pure ALOHA by dividing time into discrete slots:

• Devices can only transmit at the beginning of a time slot.
• If a collision occurs, devices wait for a random number of time slots before retransmitting.
• The maximum channel utilization is about 36.8%, twice that of Pure ALOHA.

2. Carrier Sense Multiple Access (CSMA)

CSMA improves upon ALOHA by having devices listen to the medium before transmitting:

• If the medium is idle, the device transmits.
• If the medium is busy, the device waits until it becomes idle.

There are several variants of CSMA:

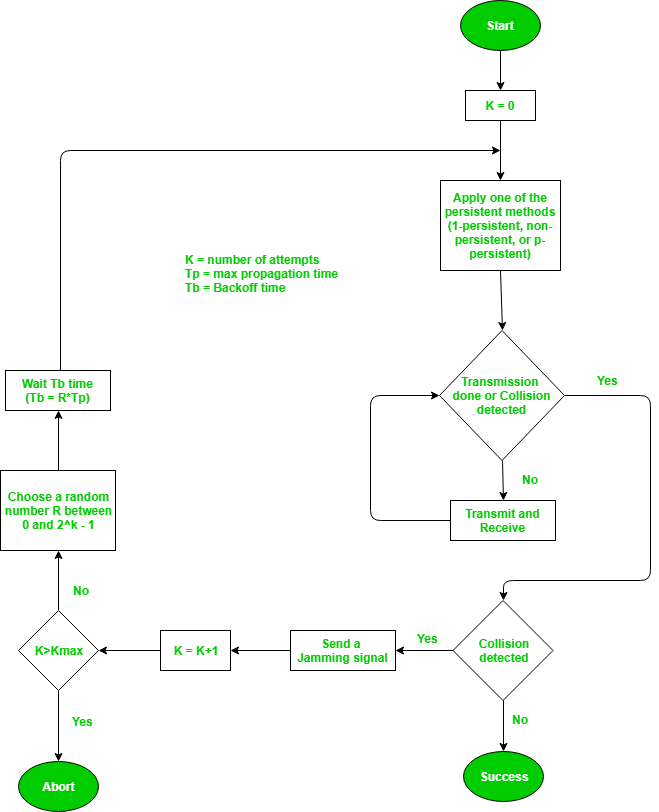

CSMA with Collision Detection (CSMA/CD)

CSMA/CD, used in traditional Ethernet, adds collision detection to CSMA:

• Devices listen to the medium while transmitting.
• If a collision is detected, devices stop transmitting immediately and send a jam signal.
• After a collision, devices wait for a random amount of time before retrying.

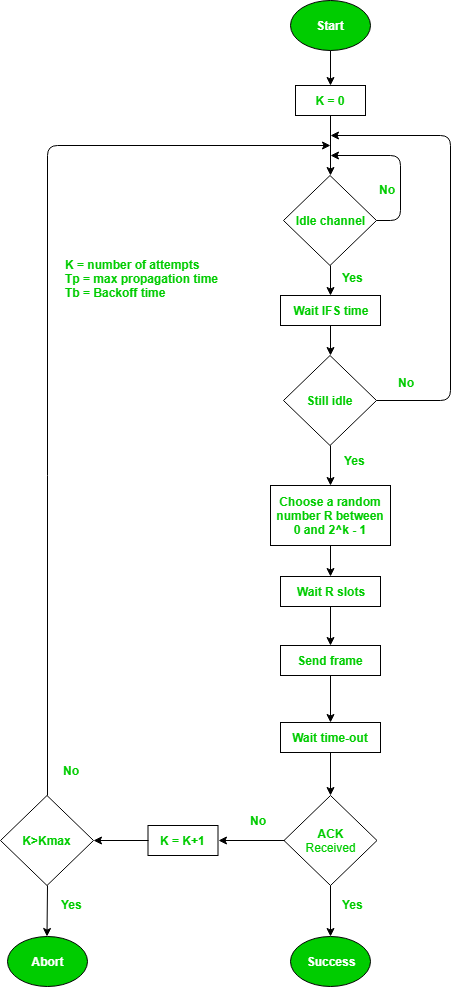

CSMA with Collision Avoidance (CSMA/CA)

CSMA/CA, used in wireless networks like Wi-Fi, tries to avoid collisions:

• Before transmitting, devices wait for a random amount of time (backoff).
• Devices may use a Request to Send (RTS) / Clear to Send (CTS) mechanism to reserve the medium.
• Devices may use a Network Allocation Vector (NAV) to track when the medium will be free.

3. Carrier Sense Multiple Access with Collision Resolution (CSMA/CR)

CSMA/CR is an extension of CSMA that includes mechanisms to resolve collisions without requiring retransmission:

• Devices can detect collisions during transmission.
• When a collision is detected, a deterministic algorithm is used to decide which device continues transmitting.
• This approach is used in protocols like the Controller Area Network (CAN) bus.

Collision Handling in Random Access Protocols

Collision handling is a critical aspect of random access protocols. There are several approaches to handling collisions:

1. Collision Detection

In collision detection, devices can detect when a collision occurs during transmission. This is typically done by comparing the transmitted signal with the signal on the medium. If they differ, a collision has occurred.

Collision detection is most effective in wired networks, where the signal strength is relatively constant and collisions can be reliably detected.

2. Collision Avoidance

In collision avoidance, devices try to minimize the probability of collisions by using techniques such as:

• Carrier sensing: Listening to the medium before transmitting.
• Random backoff: Waiting for a random amount of time before retransmitting after a collision.
• RTS/CTS: Using control frames to reserve the medium before transmitting data.

Collision avoidance is particularly important in wireless networks, where collision detection is difficult due to factors such as the hidden terminal problem.

3. Collision Resolution

In collision resolution, when a collision occurs, a deterministic algorithm is used to decide which device continues transmitting. This approach is used in protocols like the Controller Area Network (CAN) bus, where each bit position is used to resolve conflicts.

Performance of Random Access Protocols

The performance of random access protocols depends on several factors:

1. Throughput

Throughput is the amount of data successfully transmitted per unit time. It depends on factors such as:

• The protocol used (Pure ALOHA, Slotted ALOHA, CSMA, etc.).
• The number of active devices.
• The traffic pattern (bursty vs. continuous).
• The propagation delay relative to the transmission time.

2. Delay

Delay is the time it takes for a frame to be successfully transmitted. It includes:

• Access delay: The time spent waiting to access the medium.
• Transmission delay: The time spent transmitting the frame.
• Propagation delay: The time it takes for the signal to travel from the sender to the receiver.
• Processing delay: The time spent processing the frame at the receiver.

3. Fairness

Fairness refers to how equitably the medium is shared among devices. Some random access protocols may favor certain devices over others, leading to unfair access to the medium.

Advantages of Random Access Protocols

1. Simplicity: Random access protocols are relatively simple to implement, requiring minimal coordination among devices.

2. Decentralized: There is no central controller, making the system more robust to single points of failure.

3. Dynamic: Devices can join or leave the network without affecting the protocol's operation.

4. Low Delay under Light Load: When the network load is light, devices can transmit immediately without waiting, resulting in low delay.

5. Adaptability: Random access protocols can adapt to varying traffic patterns, making them suitable for networks with bursty traffic.

Disadvantages of Random Access Protocols

1. Collisions: Collisions waste bandwidth and can lead to reduced throughput, especially under heavy load.

2. Unpredictable Performance: The performance of random access protocols can be unpredictable, depending on factors such as the number of active devices and the traffic pattern.

3. No Guaranteed Access Time: Random access protocols do not guarantee when a device will be able to transmit, which can be problematic for time-sensitive applications.

4. Inefficiency under Heavy Load: As the network load increases, the number of collisions increases, leading to decreased throughput.

Applications of Random Access Protocols

Random access protocols are used in various applications:

1. Local Area Networks (LANs): Ethernet, one of the most widely used LAN technologies, uses CSMA/CD (in traditional Ethernet) or a variant of it.

2. Wireless Networks: Wi-Fi (IEEE 802.11) uses CSMA/CA to manage access to the shared wireless medium.

3. Satellite Networks: Some satellite networks use variants of ALOHA for random access channels.

4. Ad Hoc Networks: In ad hoc networks, where there is no fixed infrastructure, random access protocols provide a decentralized way for devices to communicate.

5. Internet of Things (IoT): Many IoT networks use random access protocols due to their simplicity and adaptability to varying traffic patterns.

Comparison of Random Access Protocols

Conclusion

Random Access Protocols provide a decentralized way for devices to share a common communication medium. They are particularly useful in networks with bursty traffic, where devices may not always have data to transmit.

While random access protocols have limitations, particularly in terms of efficiency under heavy load and unpredictable performance, they remain widely used in various applications due to their simplicity, adaptability, and robustness.

From the early ALOHA system to modern Wi-Fi networks, random access protocols have played a crucial role in the development of computer networks, enabling efficient and flexible communication among devices without the need for centralized coordination.
